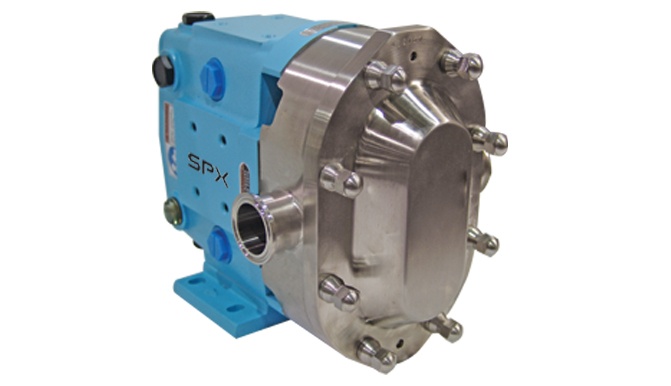

Universal 2 Series - Automative Paint Pumps
This positive displacement pump is manufactured specifically for paint re-circulation in the automotive industry.
A modification of the Universal 2 positive displacement pump, this pump is manufactured specifically for paint re-circulation in the automotive industry.
- Manufactured and tested with non-silicone lubricants
- Maximum pressure: 200-300 psi (13.8-20.7 bar), depending on model
- Temperature ranges: -40°F (-40°C) to 300°F (149°C)
Pump Comparisons
| Requirements |
Waukesha
|
Turbine
|
Piston
|
|---|---|---|---|
| Eliminates surge suppression |
YES
|
YES
|
NO
|
| Constant flow regardless of system pressure changes |
YES
|
YES
|
YES
|
| Minimal heat input |
YES
|
NO
|
YES
|
| Variable speed drive options |
YES
|
NO
|
YES
|
| Energy efficient |
YES
|
NO
|
NO
|
| Easily repaired |
YES
|
NO
|
NO
|
| Easily maintained |
YES
|
YES
|
NO
|
| Prevent metallic flake degradation |
YES
|
NO
|
YES
|
|
MODEL |
DISPLACEMENT |
NOMINAL |
INLET/ |
PRESSURE |
MAX |
TEMP |
|---|---|---|---|---|---|---|
| 006-UII-AP | .008 GAL. (.03 Liter) | 6.6 GPM (1.5 m³/hr.) | 1" | 300 | 900 | -40° F (-40° C) to 300° F (149° C) |
| 015-UII-AP | .014 GAL. (.05 Liter) | 9.9 GPM (1.8 m³/hr.) | 1" | 250 | 800 | |
| 018-UII-AP | .029 GAL. (.11 Liter) | 17.4 GPM (3.9 m³/hr.) | 1" | 200 | 700 | |
| 030-UII-AP | .06 GAL. (.23 Liter) | 36 GPM (8.2 m³/hr.) | 1" | 250 | 600 | |
| 060-UII-AP | .15 GAL. (.57 Liter) | 90 GPM (20.4 m³/hr.) | 2" | 250 | 600 | |
| 130-UII-AP | .25 GAL. (.95 Liter) | 150 GPM (34.1 m³/hr.) | 3" | 200 | 600 | |
| 220-UII-AP | .52 GAL. (1.93 Liter) | 312 GPM (68.1 m³/hr.) | 4" | 200 | 600 |
