Screw

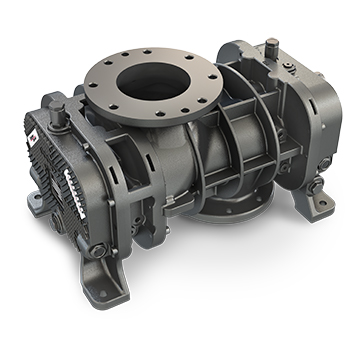

Much like DNA, the rotor design of our blowers dictate what they become. Gardner Denver is excited to announce the launch of our new CycloBlower VHX. By adding a variable helix to our patented helical screw design, unmatched levels of blower performance and efficiency is achieved. This new patented rotor design incorporates faster internal compression and a significantly larger discharge port to eliminate losses, thus creating premium efficiency and higher turndown capability.

Features:

• Patented, highly-efficient 3×5 variable helix screw rotor profile
• Food-grade PTFE (Polytetrafluoroethylene) coated rotors
• 3 discharge port designs matches the most efficient performance to your application requirements
• High pressure capability up to 36 psi
• O-ring sealing
• Helical Timing Gears
• Unique Dual Splash Lubrication with eccentric slinger ring
• Force Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi
• Inpro/Seal Premium Oil Seals
• Mechanical Seals also available for gas applications
• Piston Ring or Graphite Air Seals
• Robust Ductile Iron Shaft
• Available as bare blower for upgrading existing packages

Benefits:

Patented Design

• Patented, highly-efficient 3×5 variable helix screw rotor profile provides a competitive advantage for you
• Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency
• Three discharge port options optimize efficiencies based on your specific performance needs
• High pressure capability for dense phase conveying applications

Best of the Best Components

O-Rings

• O-Ring Seals
• Durable Protection
• No Gaskets

Helical Timing Gears

• Smooth, Quiet Operation at all Speeds
• Assures on-Slip Rotor Timing

Dual-Splash Lubrication with Eccentric Slinger Ring

• Unique Design
• Maximizes Efficiency by Reducing Power Consumption
• Optimizes Oil Distribution

Discharge Bearings

• Axial: 4 Point Angular Contact Bearings
• Radial: Cylindrical Roller
• Provides Absolute Strength and Stability on Multiple Planes to Handle Extreme Applications
• Extended Bearing Life

Inpro/Seal® Premium Oil Seal

• Contactless Dual-Ring Design
• Non-Wearing
• Extends Longevity Reducing Maintenance Costs
• Market-Leading Protection Against Leaks

Piston Ring Air Seals

• Delivers Leak-Free Operation
• Provides Maximized Seal Life

Robust Ductile Iron Shaft

• Designed & Tested for Strength
• High Shaft Load Capacity
• Direct & V-Belt Drive Capable

PTFE (Polytetrafluoroethylene) Coated Rotors

• Food Grade
• Minimizes Air Loss
• Maximizes Efficiency

Options

Force Feed Lubrication

• Ensures Cool Oil Temperature and Distribution
• Optional for Applications up to 20 psi
• Required for Applications Greater than 20 psi

Mechanical Seals

• For Gas Applications
• Interchangeable with Inpro/Seal

PTFE (Polytetrafluoroethylene) Coated Cylinder

• Minimizes Air Loss
• Maximizes Efficiency
• Corrosion and Rust Protection

Graphite Air Seals

• Required for High Pressure Applications Over 20 psi

Low, Medium & High Pressure Discharge Cylinder

• Optimizes Efficiencies
• Unique Technology
•

Installation Flexibility

• Top and Bottom Discharge Orientations
• 4 Mounting Foot Configurations Available
• ANSI or Metric Flanges

RTD Ports & Probes

• Designed to Ensure Precise and Accurate Bearing Temperature Measurements
