Screw

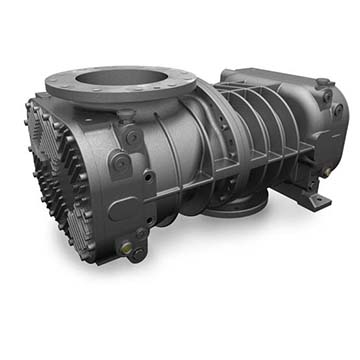

The CycloBlower H.E. was built with efficiency in mind for energy savings. With energy consumption typically being the largest cost of ownership, the CycloBlower H.E.'s best-in-class energy efficiency can save thousands on energy bills, lowering your bottom line, and increasing profits.

With airflows up to 6,200 CFM, pressures up to 36 psi, and vacuum up to 22 inches of mercury it is ideal  for a wide range of applications including Wastewater Treatment, dilute & dense phase Pneumatic Conveying, Cement, Chemical Processing, Industrial Processing, Food Processing, and Plastic Molding and Handling.

Features:

• Patented, highly-efficient 3×5 helical screw rotor profile
• Food-grade PTFE (Polytetrafluoroethylene) coated rotors
• Exclusive split-cylinder design and available discharge port designs  matches the most efficient performance to your application requirements
• High pressure capability up to 36 psi
• O-ring sealing
• Helical Timing Gears
• Unique Dual Splash Lubrication with eccentric slinger ring
• Force Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi
• Inpro/Seal Premium Oil Seals
• Mechanical Seals also available for gas applications
• Piston Ring or Graphite Air Seals
• Robust Ductile Iron Shaft
• Available as bare blower for upgrading existing packages

Benefits:

Patented Design

• Patented, highly-efficient 3×5 helical screw rotor profile provides a competitive advantage for you
• Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency
• Exclusive split-cylinder design matches performance to your application requirements
• Three discharge port options optimize efficiencies based on your specific performance needs
• High pressure capability for dense phase conveying applications

Best of the Best Components

O-Rings

• O-Ring Seals
• Durable Protection
• No Gaskets

Helical Timing Gears

• Smooth, Quiet Operation at all Speeds
• Assures on-Slip Rotor Timing

Dual-Splash Lubrication with Eccentric Slinger Ring

• Unique Design
• Maximizes Efficiency by Reducing Power Consumption
• Optimizes Oil Distribution

Discharge Bearings

• Axial: 4 Point Angular Contact Bearings
• Radial: Cylindrical Roller
• Provides Absolute Strength and Stability on Multiple Planes to Handle Extreme Applications
• Extended Bearing Life

Inpro/Seal® Premium Oil Seal

• Contactless Dual-Ring Design
• Non-Wearing
• Extends Longevity Reducing Maintenance Costs
• Market-Leading Protection Against Leaks

Piston Ring Air Seals

• Delivers Leak-Free Operation
• Provides Maximized Seal Life

Robust Ductile Iron Shaft

• Designed & Tested for Strength
• High Shaft Load Capacity
• Direct & V-Belt Drive Capable

PTFE (Polytetrafluoroethylene) Coated Rotors

• Food Grade
• Minimizes Air Loss
• Maximizes Efficiency

Options

Force Feed Lubrication

• Ensures Cool Oil Temperature and Distribution
• Optional for Applications up to 20 psi
• Required for Applications Greater than 20 psi

Mechanical Seals

• For Gas Applications
• Interchangeable with Inpro/Seal

PTFE (Polytetrafluoroethylene) Coated Cylinder

• Minimizes Air Loss
• Maximizes Efficiency

Graphite Air Seals

• Required for High Pressure Applications Over 20 psi

Low, Medium & High Pressure Discharge Cylinder

• Optimizes Efficiencies
• Unique Technology
•

Installation Flexibility

• Top and Bottom Discharge Orientations
• 3 and 4 Mounting Foot Configurations Available
• ANSI or Metric Flanges

RTD Ports & Probes

• Designed to Ensure Precise and Accurate Bearing Temperature Measurements
