Universal Rectangular Flange Model

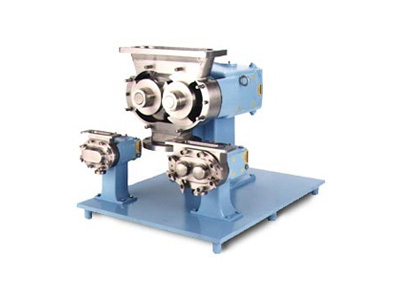

Universal I Series Rectangular Flange PD Pump
Specifically designed to pump "unpumpable" products; such as dough, meat emulsion, puddings and cheese, that cause bridging and cavitation in conventional pumps. Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches.
- 316 stainless steel body
- Large, rectangular inlet port
- Non-galling Waukesha "88" alloy rotors
- Maximum pressure: 200 psi (13.8 bar)*
- Temperature range:-40° F (-40° C) to 300° F (149° C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
MAXIMUM |
|---|---|---|---|
| 014-UI | 0.0142 GAL. (0.054 Liter) | 5.68 GPM (1.3 m³/hr.) | 200 PSI (13.8 bar) |
| 024-UI | 0.029 GAL. (0.110 Liter) | 11.6 GPM (2.6 m³/hr.) | 200 PSI (13.8 bar) |
| 034-UI | 0.060 GAL. (0.227 Liter) | 24 GPM (28.2 m³/hr.) | 200 PSI (13.8 bar) |
| 064-UI | 0.153 GAL. (0.579 Liter) | 61 GPM (13.9 m³/hr.) | 200 PSI (13.8 bar) |
|
134-UI
|
0.254 GAL. (0.961 Liter)
|
101 GPM (22.9 m³/hr.)
|
200 PSI (13.8 bar)
|
| 224-UI | 0.522 GAL. (1.976 Liter) | 208 GPM (47.2 m³/hr.) | 200 PSI (13.8 bar) |
| 324-UI | 0.754 GAL. (2.854 Liter) | 301 GPM ( 68.3 m³/hr.) | 200 PSI (13.8 bar) |
