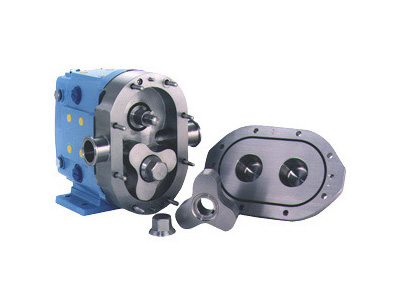

Universal Lobe Series Positive Displacement Pumps

Universal lobe pumps feature bidirectional flow with a free draining internal flat profile pump body. Uniquely designed Waukesha "88" alloy rotors permit running at tighter clearances and higher efficiencies.

The Universal Lobe Pumps were specifically designed for a different challenge: lower cost and CIP (clean in place) applications.

While intended for lower cost, Universal Lobe Pumps are not light duty. They incorporate the advanced technology of the new Universal II PD pump that strengthens sanitary performance and extends pump life. They are capable of accommodating high temperatures and pressures up to 300 psi (21 bar).

Universal Lobe Pump Series utilizes the Universal II gear case with 3-way mounting flexibility. It offers the full range of seal and port options and has Integral Speed Reducer (ISR) mounting capabilities.

  • Free draining cover in horizontal or vertical port position
  • Rotor/shaft connection sealed from product zone
  • Non-galling Waukesha "88" alloy rotors
  • Mechanical seals standard; single or flushed double seals optional
  • Optional steam-in-place and seal flush
  • 316 stainless steel pump body and cover; 316L pump body optional
  • Additional options: jacketed cover, steam-in-place and seal flush, stainless steel bearing frame, electropolish of product contact surfaces
  • Maximum pressure: 200-300 psi (13.8-20.7 bar), depending on model
  • Temperature range: -40° F (-40° C) to 300° F (149° C)

MODEL

DISPLACEMENT
PER REVOLUTION

NOMINAL
CAPACITY TO

INLET/
OUTLET

PRESSURE
PSI

MAX
RPM

TEMP
RANGE

018-UL 0.033 Gal. (0.125 Liter) 33 GPM (7.5 m³/hr.) 1" / 2" 200 PSI (13.8 bar) 1000 -40° F
(-40° C)
to
300° F
(149° C)
030-UL 0.071 Gal. (0.269 Liter) 71 GPM (16.1 m³/hr.) 1" / 2" 300 PSI (20.7 bar) 1000
060-UL 0.153 Gal. (0.579 Liter) 120 GPM (27.3 m³/hr.) 2" 300 PSI (20.7 bar) 800
130-UL 0.253 Gal. (0.958 Liter) 170 GPM (38.6 m³/hr.) 3" 200 PSI (13.8 bar) 700
220-UL 0.502 Gal. (1.900 Liter) 300 GPM (68.1 m³/hr.) 4" 200 PSI (13.8 bar) 600
320-UL 0.878 Gal. (3.324 Liter) 525 GPM (118.1 m³/hr.) 6" 200 PSI (13.8 bar) 600
