Pumps
Universal 2 Series

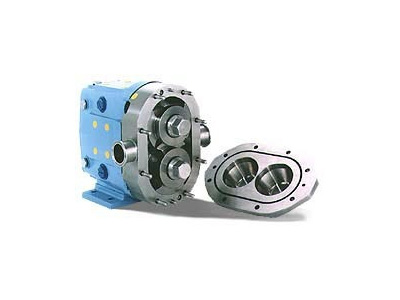

Universal II Series PD Pumps
In addition to the proven operation and durability of the Universal Series, this pump includes advanced sanitation technologies, long life features and installation flexibility.
- Bi-directional flow
- Large diameter shafts for greater strength & stiffness
- Rotor/shaft connection sealed from the product zone
- Extended-life outer seal
- Mechanical seals standard
- 316 pump body standard; 316L pump body optional
- Heavy-duty bearing frame; stainless steel bearing frame optional
- Non-galling Waukesha "88" alloy rotors for tighter running clearances and higher efficiencies
- Additional options: CIP capability, free draining body and cover for side mounted applications, seal flushing, steam-in-place, aseptic version
- Maximum pressure: 200-500 psi (13.8-34.5 bar), depending on model
- Temperature range: -40° F (-40° C) to 300° F (149° C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
MAXIMUM |
|---|---|---|---|
| 006-UII | 0.0082 Gal. (0.031 Liter) | 8 GPM (1.8 m³/hr.) |
300 PSI (20.7 bar)
|
| 015-UII | 0.0142 Gal. (0.054 Liter) | 11 GPM (2.5 m³/hr.) |
250 PSI (17.2 bar)
|
| 018-UII | 0.029 Gal. (0.110 Liter) | 20 GPM (4.5 m³/hr.) |
200 PSI (13.8 bar)
|
| 030-UII | 0.060 Gal. (0.227 Liter) | 36 GPM (8.2 m³/hr.) |
250 PSI (17.2 bar)
|
|
040-UII
|
0.076 Gal. (0.288 Liter)
|
45 GPM (10.2 m³/hr.)
|
150 PSI (10.3 bar)
|
| 045-UII | 0.098 Gal. (0.371 Liter) | 58 GPM (13.2 m³/hr.) |
450 PSI (31.0 bar)
|
| 060-UII | 0.153 Gal. (0.579 Liter) | 90 GPM (20.4 m³/hr.) |
300 PSI (20.7 bar)
|
| 130-UII | 0.253 Gal. (0.958 Liter) | 150 GPM (34.1 m³/hr.) |
200 PSI (13.8 bar)
|
| 180-UII | 0.380 Gal. (1.438 Liter) | 230 GPM (52.2 m³/hr.) |
450 PSI (31.0 bar)
|
| 210-UII | 0.502 Gal. (1.900 Liter) | 300 GPM (68.1 m³/hr.) |
500 PSI (34.5 bar)
|
| 213-UII | 0.502 Gal. (1.900 Liter) | 300 GPM (68.1 m³/hr.) |
500 PSI (34.5 bar)
|
| 220-UII | 0.521 Gal. (1.972 Liter) | 310 GPM (70.4 m³/hr.) |
300 PSI (20.7 bar)
|
| 320-UII | 0.752 Gal. (2.847 Liter) | 450 GPM (102 m³/hr.) |
300 PSI (20.7 bar)
|
| 370-UII | 1.099 gal. (4.160 Liter) | 660 GPM (150 m³/hr.) | 200 PSI (13.8 bar) |
