Pumps

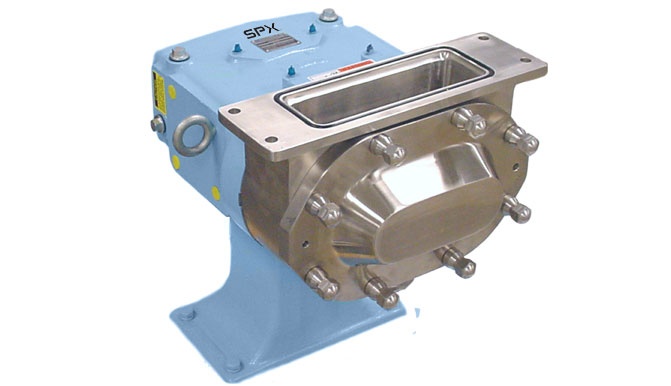

Universal 2 Series Rectangular Flange Model
Specifically designed to pump "unpumpable" products, such as dough, meat emulsion, puddings and cheese, that cause bridging and cavitation in conventional pumps. Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches.
- 316 stainless steel body
- Large, rectangular inlet port
- Non-galling Waukesha "88" alloy rotors
- Maximum pressure: 200 psi (13.8 bar)*
- Temperature range:-40° F (-40° C) to 300° F (149° C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
MAXIMUM |
|---|---|---|---|
| 014-UII | 0.0142 GAL. (0.054 Liter) | 5.68 GPM (1.3 m³/hr.) | 200 PSI (13.8 bar) |
| 034-UII | 0.060 GAL. (0.227 Liter) | 24 GPM (5.5 m³/hr.) | 250 PSI (17.2 bar) |
| 064-UII | 0.153 GAL. (0.579 Liter) | 61 GPM (13.9 m³/hr.) | 300 PSI (20.7 bar) |
| 134-UII | 0.253 GAL. (.958 Liter) | 101 GPM (22.9 m³/hr.) | 200 PSI (13.8 bar) |
|
184-UII
|
0.380 GAL. (1.438 Liter)
|
152 GPM (34.5 m³/hr.)
|
450 PSI (31.0 bar)
|
| 214-UII | 0.502 GAL. (1.90 Liter) | 200 GPM (45.4 m³/hr.) | 500 PSI (34.5 bar) |
| 224-UII | 0.521 GAL. (1.972 Liter) | 208 GPM (47.2 m³/hr.) | 300 PSI (20.7 bar) |
| 324-UII | 0.752 GAL. (2.847 Liter) | 300 GPM (68.1 m³/hr.) | 300 PSI (20.7 bar) |
