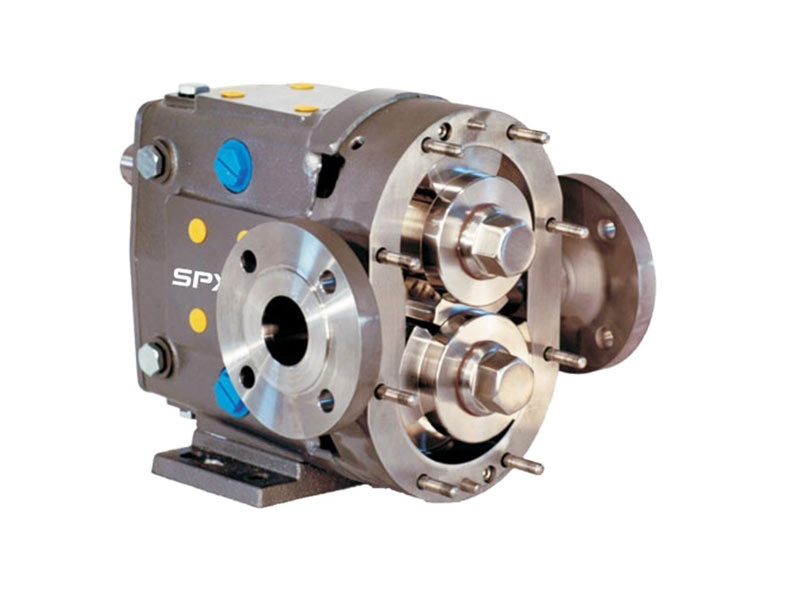

Universal 2 Series Pulp and Paper Pumps
Waukesha Cherry-Burrell, an SPX brand has been a leader in the design, manufacturing and application of external circumferential piston (ECP) style, rotary positive displacement pumps. Our Positive Displacement pumps are in thousands of challenging chemical and industrial applications.
The ECP positive displacement pump offers a number of unique advantages. This pump will handle settled slurries that jam up lobe pumps or progressing cavity pumps with ease. It also imparts very low shear forces to the pumped product, far lower shear than lobe pumps or progressive cavity pumps. The ECP pump is designed for 300°F (149°C) and is not damaged by hot products. If we flush the mechanical seal, the pump can run dry forever as there is no internal contact.
The ECP positive displacement pump has features the paper industry has demanded for a long time.
Key advantages of the SP (starch pump) Universal II Paper Industry Pump in paper mill applications:
- Pumps filled with settled slurries will start without damaging pump or seals
- Pump with water flushed seals can run dry indefinitely
- Low shear pump will not harm sensitive polymers or cooked starch
- Smooth pulsation free flow
- No internal rotor contact
- Shaft timing less critical than lobe pump design
- Typically requires less horsepower than Progressing Cavity
- Bearing Isolators available
| MODEL | DISPLACEMENT PER REVOLUTION |
NOMINAL CAPACITY TO |
INLET/ OUTLET |
PRESSURE RANGE UP TO |
MAX RPM |
TEMP RANGE |
||||||||||||
| SP-006-UII | 0.008 GAL. (0.030 LITER) |
7 GPM (1.6 m³/hr.) |
1" | 300 PSI (20.7 BAR) |
900 |
-40° F |
||||||||||||
| SP-015-UII | 0.014 GAL. (0.053 LITER) |
11 GPM (2.5 m³/hr.) |
1" | 250 PSI (17.2 BAR) |
800 | |||||||||||||
| SP-018-UII |
0.029 GAL. |
20 GPM (4.5 m³/hr.) |
1" | 200 PSI (13.8 BAR) |
700 | |||||||||||||
| SP-030-UII | 0.060 GAL. (0.227 LITER) |
36 GPM (8.2 m³/hr.) |
1" | 250 PSI (17.2 BAR) |
600 | |||||||||||||
| SP-045-UII | 0.098 GAL. (0.371 LITER) |
59 GPM (13.4 m³/hr.) |
2" | 450 PSI (31.0 BAR) |
600 | |||||||||||||
| SP-060-UII | 0.153 GAL. (0.579 LITER) |
92 GPM (20.9 m³/hr.) |
2" | 300 PSI (20.7 BAR) |
600 | |||||||||||||
| SP-130-UII | 0.253 GAL. (0.958 LITER) |
152 GPM (34.5 m³/hr.) |
3" | 200 PSI (13.8 BAR) |
600 | |||||||||||||
| SP-180-UII | 0.380 GAL. (1.438 LITER) |
228 GPM (51.8 m³/hr.) |
3" | 300 PSI (20.7 BAR) |
600 | |||||||||||||
| SP-220-UII | 0.521 GAL. (1.972 LITER) |
313 GPM (71.1 m³/hr.) |
4" | 200 PSI (13.8 BAR) |
600 | |||||||||||||
| SP-320-UII | 0.752 GAL. (2.846 LITER) |
451 GPM (102.4 m³/hr. |
6" | 250 PSI (17.2 BAR) |
600 | |||||||||||||
| SP-420-UHC | 1.62 GAL. (6.13 LITER) |
650 GPM (147 m³/hr.) |
6" | 200 PSI (13.8 BAR) |
400 | |||||||||||||
| SP-520-UHC | 2.38 GAL. (9.00 LITER) |
830 GPM (187 m³/hr.) |
8" | 200 PSI (13.8 BAR) |
350 |
