Pumps
Universal 1 Series- Aseptic Pumps

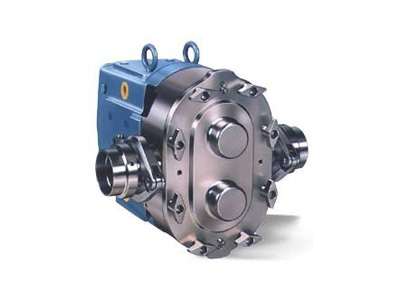

Universal I Series Aseptic PD Pump
Aseptic version of the standard Universal Line. Live steam or sterile solution is circulated to ports, cover and product seal areas, where bacteria might enter.
- Uses live steam or sterile fluid
- 316L stainless steel pump body standard
- Mechanical seals standard
- Easy to clean, disassemble
- Maximum pressure: 200 psi (13.8 bar)*
- Temperature range: -40°F (-40°C) to 300°F (149°C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
INLET/ |
PRESSURE |
MAX |
TEMP |
|---|---|---|---|---|---|---|
| 033A | 0.051 GAL. (0.193 Liter) | 30 GPM (6.8 m³/hr.) | 1" (25mm) | 225 PSI (15.5 bar) | 600 | -40° F (-40° C) to 300° F (149° C) |
| 133A | 0.205 GAL. (0.776 Liter) | 120 GPM (27.3 m³/hr.) | 3" (76mm) | 225 PSI (15.5 bar) | 600 | |
| 223A | 0.440 GAL. (1.666 Liter) | 260 GPM (59.1 m³/hr.) | 4" (102mm) | 225 PSI (15.5 bar) | 600 | |
| 323A | 0.616 GAL. (2.332 Liter) | 360 GPM (81.8 m³/hr.) | 6"(152mm) | 225 PSI (15.5 bar) | 600 |
