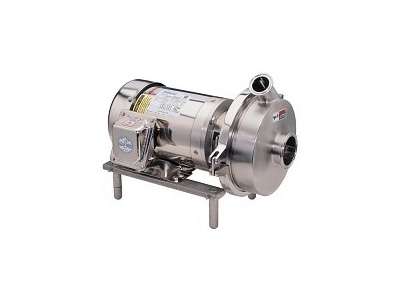

S200 Series All Machined Centrifugal Pumps
S200 Series All Machined Centrifugal Pumps
Designed for use in the Bio-Pharmaceutical industry, these pumps are manufactured to ASME BPE specification criteria. All product contact components are machined from wrought <5% ferrite level, 316L SS, and feature a 20 Ra product contact surface finish. Material heat numbers are available on all product contact components.
Standard Feature and Benefits
- High efficiency, low NPSHR design for a wide variety of applications.
- One size mechanical seal for all 200 Series models; reducing parts inventory and cost (commercial seals available)
- Integral impeller/shaft design for fewer parts, greater concentricity and easy maintenance
- Close coupled pumps use NEMA JM Frame motors with larger diameter shafts and bearings (compared to C Frame motors)
- All WCB 200 Series impellers are made from wrought 316L SS
- Horizontal, vertical and 45° angle discharge port orientation available
Optional Features and Benefits
- 15 Ra., electropolish and passivation product contact surface finishes
- WFI seal arrangements
- Double mechanical seals
- 304 SS motor adapter
- Casing drain
- SS motors
