Round Separators

Low Profile Flow-Thru Separator

Low Profile Flow-Thru Separator

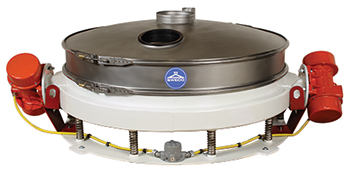

The SWECO LX Low Profile Flow-Thru Separator allows for high capacity wet or dry scalping in a compact, low headroom design. Dual motors mounted on opposite sides of the LX allow unrestricted flow of material and create the 3-D motion that allows oversize material full discharge, keeping the screen clear for maximum product flow. Its low headroom requirements (as little as 15 inches) and straight flow design, allow the LX to fit easily into existing product lines without reworking the entire system. Check out one of SWECO's latest innovations, the Twin-Vibe; a custom dual motor control tailored for the LX's dual drive.

LA Low Profile Flow-Thru Separator

The SWECO LA Low Profile Flow-Thru Separator offers the same high capacity wet or dry scalping in a compact, lowLA Low Profile Flow-Thru Separatorheadroom design. The LA Separator incorporates a single large vertically mounted motor to induce a sifting motion across the screen plane. The frames of the separator are mounted on "rubber isolators" compared to "springs" in conventional low profile and other standard separators. Additionally, the LA Separator runs at higher G loadings and speeds than traditional low profile separators.
