INDAG

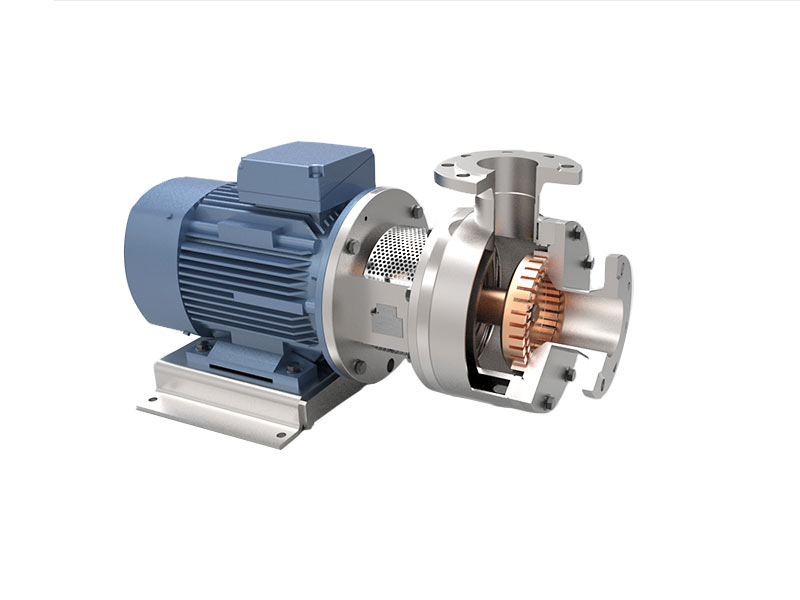

Homogenizer DLM-H

  • Very good self-cleaning during CIP cleaning
  • Efficient input of mixed energy
  • Modular structure of the machine
  • Hygienic construction
The INDAG homogenizer type DLM/H is used for effective dispersion (emulsification) and for the production of a suspension from liquids and solids. In addition, solids in liquids can be broken up. Examples of the use of the DLM/H are: the production of stable emulsions from oil + water + emulsifier; diluting sodium lauryl ether sulfate (SLES) + water; the production of paints, varnishes, detergents, adhesives. With an INDAG DLM/H the process time is shortened and the product quality is improved compared to batch systems.

Can be installed
horizontally or vertically

Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar, 100 bar

Material
1.4301 (AISI 304), 1.4404 (AISI 316L), 1.4539 (AISI 904L), 1.4462 (AISI 318), 1.0421 (AISI 106-A)

Seals
Single and double-acting mechanical seals, stuffing box seals

Connections
EN, DIN, ANSI flanges

Speeds from
1,500 rpm to 6,000 rpm

Capacities
50 l/h to 120,000 l/h

Temperature
0 °C to 300 °C

Viscosities
1 mPas to 500,000 mPas
