High-Pressure Centrifugal Pumps

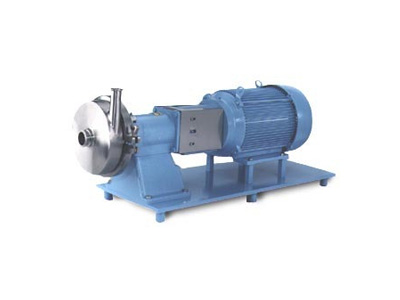

200 Series High-Pressure Centrifugal Pumps
Specifically designed for re-circulating service in reverse osmosis and other membrane systems. Equipped with balanced double shaft seal with buffer fluid ports on top and bottom for complete removal of air/vapor from seal chamber
- Rated up to 700 psi (48 bar) maximum pump casing pressure (at discharge)
- Maximum differential pressure 150 psi (10 bar) (based on water)
- Sanitary construction for food and dairy processing service
- Large, long-life bearings with minimal wearing labyrinth seals
- 316L stainless steel impeller and shaft; 17-4PH stainless steel casing
- Motor flange adapter reduces coupling wear
|
MODEL |
INLET |
OUTLET |
MAXIMUM |
|
|
||
|---|---|---|---|---|---|---|---|
|
1750 RPM |
3500 RPM |
1750 RPM |
3500 RPM |
||||
|
P2085 |
2" (50mm) |
1½" |
8.5" |
N/A |
140 GPM |
N/A |
330 ft. |
|
P2085 |
2½" (65mm) |
2" |
8.5" |
N/A |
400 GPM |
N/A |
340 ft. |
