INDAG

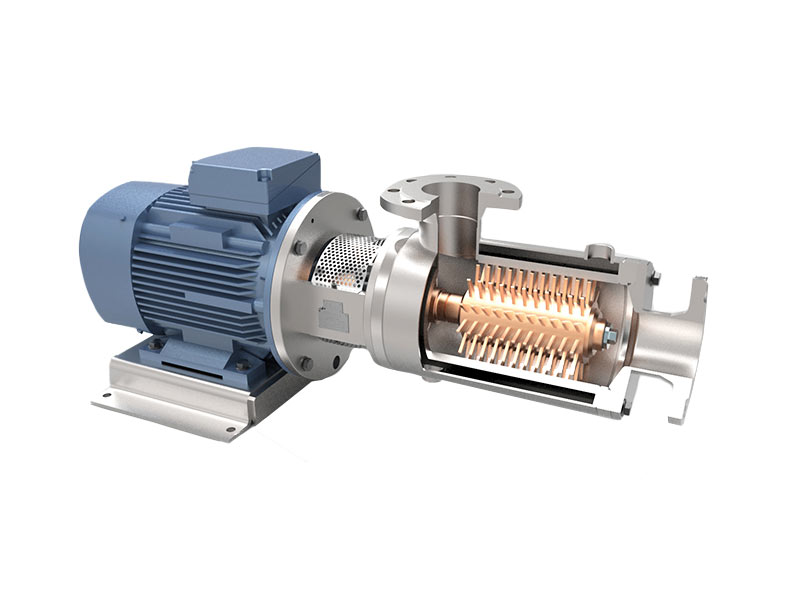

Dynamic Inline Mixer DLM-S
- Very good self-cleaning during CIP cleaning
- No pressure loss
- No clogs
- Very good homogeneous mixing result even when mixing in small quantities
- Efficient input of mixed energy
- Variable, changeable mixed energy by changing the speed via frequency converter
The INDAG intensive inline mixer type DLM/S is used for the effective mixing, emulsifying, dispersing and foaming of different liquids and liquids with gases. Some examples from a number of use cases are:
Production of emulsions from oil + water + emulsifier; Oil + acid; Emulsions of silicone oil + water + emulsifier; Polymer + superheated steam dispersions; Foams made of latex + vulcanizing paste + gelling agent; Mixing bitumen + polymer + acid + adhensive; Mixing of plastic melts (PET, PA, PE, PMMA) + additives; Mixing vegetable oil + methanol + methylate.
Can be installed
horizontally or vertically
Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar, 100 bar, 160 bar
Material
1.4301 (AISI 304), 1.4404 (AISI 316L), 1.4539 (AISI 904L), 1.4462 (AISI 318), PVDF, PTFE, Teflon coated, tantalum coated, 1.0421 (AISI 106-A)
Seals
Single and double-acting mechanical seals, stuffing box seals, magnetic couplings, threaded shaft seals
Connections
EN, DIN, ANSI flanges
Speeds from
100 rpm to 3,600 rpm
Capacities
50 l/h to 120,000 l/h
Temperature
0 °C to 350 °C
Viscosities
1 mPas to 70,000,000 mPas
