INDAG

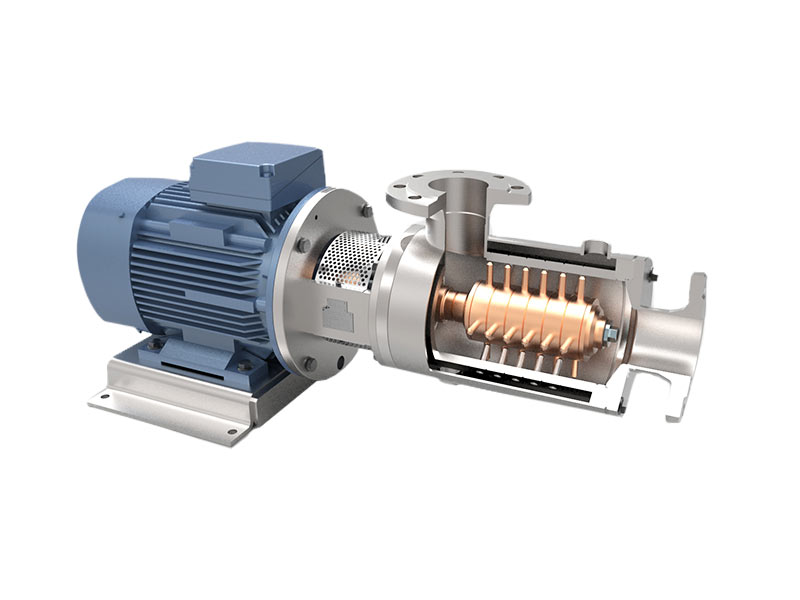

Dynamic Inline Mixer DLM-M
- Very good self-cleaning during CIP cleaning.
- No pressure loss
- No clogs or clogs
- Very good homogeneous mixing result
- Variable, changeable mixed energy by changing the speed via frequency converter
INDAG dynamic inline mixers type DLM/M are used for gentle and homogeneous mixing of a wide variety of flowable products. Even with liquids with a high proportion of solids. Since the DLM/M only has mixing elements on the rotor and not in the stator, even fibrous solids do not lead to clogging. Examples of mixing tasks are: sewage sludge + polymer solution; Paper sludge + polymer solution; Sewage sludge + superheated steam; Latex + additives; Latex foams + additives; Caustic soda + water; Lubricating oil + additives; Wax + additives.
Additives can be mixed gently into foams withput affecting the foam quality.
Can be installed
horizontally or vertically
Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar, 100 bar
Material
1.4301 (AISI 304), 1.4404 (AISI 316L), 1.4539 (AISI 904L), 1.4462 (AISI 318), PVDF, PTFE, Teflon coated, tantalum coated
Seals
Single and double-acting mechanical seals, stuffing box seals, magnetic couplings
Connections
EN, DIN, ANSI flanges
Speeds from
100 rpm to 1,800 rpm
Capacities
50 l/h to 120,000 l/h
Temperature
0 °C to 300 °C
Viscosities
1 mPas to 1,000,000 mPas
