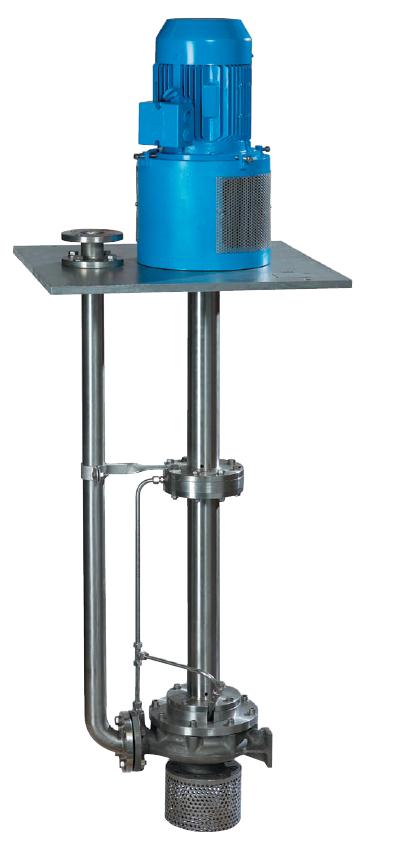

CombiSump Sump Pump for Oil and Gas
This pump is designed for lifting fluids from below ground level or from a sump. It is suitable for clean fluids or slightly contaminated liquids such as effluent, cleaning products, chemicals and hydrocarbon. The design standard used is API 610/682 especially for the petroleum industries. A magnetically coupled version is available. The maximum depth is 10 m. The impeller used is closed impeller with back vanes providing balancing of axial loads. A half open impeller with wear plates can be available. The standard sealing is oil seals but mechanical selas or gland packing is available. A vapor tight rectangular or circular mounting plate or pressurised design is optional. Motors can be standard IEC or ATEX design. Maximum capacity is 1500m3/hr and pressure 35 bar. Maximum liquid temperature is 160 bar.
A sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682.
- Standardized and modular design
- Magnetic driven option
- Customized sump depths up to 10 m
- Re-producible optimized hydraulics
- High efficiency impeller
- Closed impeller with back vanes providing axial balancing of impeller loads
- Half open impeller with wear plate and external adjustment
- Oil seal standard shaft sealing. Gas tightening option by mechanical seal or Gland Packing
- Discharge flange according to ISO 7005 PN16, PN20, PN50 or ANSI B16.5 150 lbs, 300 lbs
- Atex certification
- Pumped liquid lubricated silicon carbide radial bearings
- External lubrication optional
- Heavy duty grease lubricated double row angular contact bearing for axial loads
- Standard IEC flange motor
- Mounting plate vapor tight or pressurized design
- Rectangular or circular mounting plate
- API 610 / API 682 execution engineered for hydrocarbon and petrochemical processing industries
Suitable for :
Thin, clean or slightly contaminated liquids such as water, effluent, cleaning products, chemicals, hydrocarbons.
