"C" Series

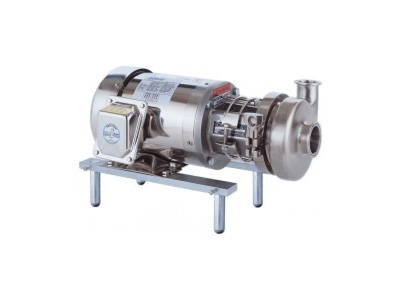

The versatile Waukesha "C" Series close-coupled pump replaces the Puriti "C" Series pump. This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.
- Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
- Easy-cleaning, open type impeller delivers smooth pumping performance
- Enlarged inlets available for larger suction lines
- Standard CIP capability
- Pump and parts are interchangeable with other C-Series brands
|
MODEL |
INLET |
OUTLET |
MAXIMUM IMPELLER SIZE |
MAXIMUM CAPACITY
|
MAXIMUM HEAD
|
||
|---|---|---|---|---|---|---|---|
|
1750 RPM
|
3500 RPM
|
1750 RPM
|
3500 RPM
|
||||
|
C100
|
1½"
(38mm) |
1"
(25mm) |
3.68"
(93mm) |
33 GPM
(7 m³/hr.) |
73 GPM
(17 m³/hr.) |
17 ft.
(5 m) |
55 ft.
(17 m) |
|
C114
|
1½"
(38mm) |
1½"
(38mm) |
4.00"
(102mm) |
74 GPM
(17 m³/hr.) |
148 GPM
(34 m³/hr.) |
18 ft.
(5 m) |
74 ft.
(23 m) |
|
C114
|
2"
(51mm) |
1½"
(38mm) |
4.00"
(102mm) |
84 GPM
(19 m³/hr.) |
180 GPM
(41 m³/hr.) |
17 ft.
(5 m) |
69 ft.
(21 m) |
|
C216
|
2"
(51mm) |
1½"
(38mm) |
6.00"
(152mm) |
145 GPM
(33 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
|
C216
|
2½"
(64mm) |
1½"
(38mm) |
6.00"
(152mm) |
168 GPM
(38 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
|
C218
|
2"
(51mm) |
1½"
(38mm) |
8.00"
(203mm) |
217 GPM
(49 m³/hr.) |
300 GPM
(68 m³/hr.) |
78 ft.
(23 m) |
317 ft.
(97 m) |
|
C218
|
3"
(76mm) |
1½"
(38mm) |
8.00"
(203mm) |
230 GPM
(52 m³/hr.) |
305 GPM
(69 m³/hr.) |
76 ft.
(23 m) |
305 ft.
(93 m) |
|
C328
|
3"
(76mm) |
2"
(51mm) |
8.00"
(203mm) |
416 GPM
(94 m³/hr.) |
635 GPM
(144 m³/hr.) |
74 ft.
(23 m) |
304 ft.
(93 m) |
|
C328
|
4"
(102mm) |
2"
(51mm) |
8.00"
(203mm) |
460 GPM
(104 m³/hr.) |
900 GPM
(204 m³/hr.) |
74 ft.
(23 m) |
313 ft.
(95 m) |
