Heavy Duty

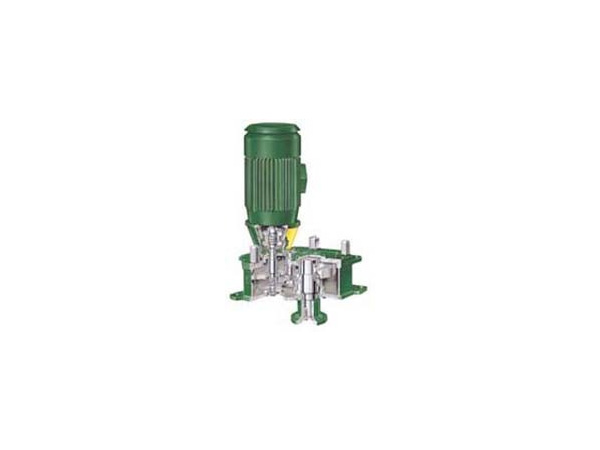

98 Series - Medium Top Entering Mixer

98 Series Mixers optimize productivity and reduce downtime

  • IsoLoad design protects gearing from dynamic loads to extend gear life
  • Available from 20 to 150 HP with AGMA speeds from 20 to 100 RPM
  • Parallel shaft, double-reduction design provides maximum installation flexibility where there are overhead space limitations
  • Carburized and ground helical gearing for quiet operation and extended gear life
  • Integral dry well oil dam prevents lubricant from leaking down the mixer shaft
  • Integral positive displacement pump provides continuous lubrication; Forced lubrication system filters out contaminants to increase oil life
  • Integral mounting plate eliminates the need for an additional bolted plate; can be mounted on large threaded rods
  • Standard C-face motor and pedestal mount reduces assembly time.
