ELISA

The BOLT^TM and ThunderBolt^{® -} Food & Feed Industry- Food Allergen - ELISA

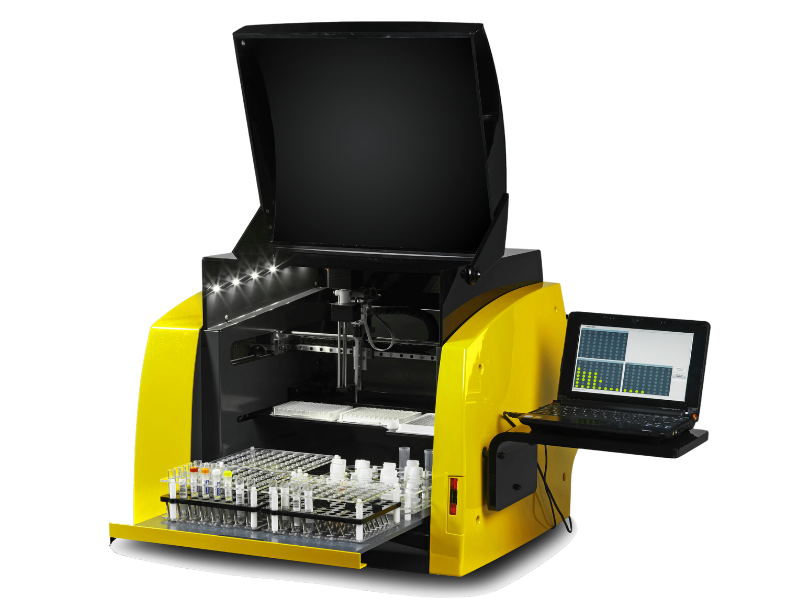

The BOLT^TM and ThunderBolt^® analyser is fully automated, open platform, that can run ELISA and Chemiluminescence (CLIA) assays. The analyser is smart, compact, LIMS compatible, and highly precise open system that is able to automatically manage all the steps of any plate-based assay from premixing to final data handling.

This walk-away instrument was designed to:

• Simplify your laboratory experience
• Increase your productivity
• Reduce your waste

Features

INTUITIVE SOFTWARE

The Bolt software adapts to your laboratory to enable maximum productivity and deliver highly reliable results. The Test Designer combines with the multitude of other features to make ongoing operation of your Bolt as effortless as possible. The Test Designer allows configuration of virtually any EIA or Chemiluminescence assay protocol down the most minute detail, including required calculations and results analysis. Computations include: Point to point, linear regression, cubic spline, 4PL, 5 PL, Lin-Lin, Lin-Log, and Log-Log representation. The software integrates with most LIS systems, and provides a fully bidirectional interface.

MODULAR DESIGN

The shaker, incubator and reader are modular features to provide you with a customizable EIA platform.

LINEAR SHAKER & INCUBATOR

Provides consistent shaking while keeping fluids in the wells, and shakes vigorously up to 900 RPM. Attain precise and accurate results with better mixing of reagents in the wells with less chance of spillage.The convection incubator quickly and uniformly heats each individual reaction well, allowing the Bolt to deliver consistent results. Have confidence in your results by eliminating the uneven heating, or “edge effect”, commonly seen with traditional chamber incubators.

BUILT-IN READER (EIA OR CLIA+EIA)

Configure your Bolt with either an LED spectrophotometer for ELISA processing, or a combination EIA+CLIA spectrophotometer/fluorescence reader to handle both ELISA and chemiluminescence assays. The ELISA reader uses LED’s and provides multiple benefits including: 100x longer bulb life, less ambient heat, more specific wavelengths and ultra-compact size. The EIA+CLIA reader boasts increased capability while maintaining the full automation, small size and excellent durability of the ELISA spectrophotometer.

HIGH PRECISION MICRO-SYRINGE

The Bolt features a highly precise micro-syringe that maintains the same level of precision as other instruments in its class, but at much lower volumes. The Bolt accurately and precisely aspirates 1μl volumes at less than 3% CV, allowing sample dilutions to be performed directly in the reaction wells, eliminating the need for extra pre-dilution steps.
